OUR RIGS ARE A TRUE COMBINATION OF ROTARY DRILLING AND AUGER DRILLING RIGS, CAPABLE OF DRILLING TO DEPTHS OF 300 METERS. THEY ARE DESIGNED WITH FEATURES TO MAXIMIZE SPEED, EFFICIENCY AND SAFETY. THEY HAVE FULL 6M (20 FT) PIPE CAPACITY, WHICH MINIMIZES TRIP IN AND TRIP OUT, SAVING YOU TIME OVER THE OTHER GUYS.

Our wheeled flat water tank/deck trucks, which accompany the rigs, include conventional and all-wheel drive trucks with heated tanks and mounted pickers. These pickers allow for ease of material handling and increased safety. Our track water trucks have conventional heated water tanks with areas on each side for material storage and have a one ton electric crane for material handling convenience.

Each of our rigs is fully tooled and self-contained to efficiently handle auger drilling, rotary drilling, air drilling, mud drilling, SPT/Shelby Testing, Wireline Coring, Instrument Installations, and Grouting. Our equipment is designed and modified to to meet the challenging geotechnical drilling conditions, harsh climate and rugged terrain in the Western Canadian Region. We have all wheel drive rig and water truck available for difficult terrain, and tracked equipment for terrain that is too difficult or remote for AWD.

View below for more information on our Drilling Equipment…

Drilling Equipment & Water Trucks

ALL OF OUR RIGS HAVE AUTOMATED PIPE HANDLING CAPACITY TO 60 METERS (200 FT) TO MINIMIZE LABOUR AND MAXIMIZE SPEED. THIS FEATURE ALSO ALLOWS FOR HANDS OFF PIPE HANDLING, WHICH CONTRIBUTES TO A SAFER AND LESS LABOUR INTENSIVE WORK ENVIRONMENT FOR THE CREW.

RIGS ARE INSPECTED AND CERTIFIED ANNUALLY BY CASSADY ENGINEERING LTD. TRUCKS ARE INSPECTED AND CERTIFIED BY THIRD PARTY SUPPLIERS TO MOT SPECIFICATIONS ANNUALLY.

Rig 10

Rig 10 - Details and Capability

IRT2 Air/Mud Rotary Mounted on a Tandem IHC Truck

  • 400m depth capability
  • Front and Rear levelling jacks
  • Automatic pipe handling to 60m
  • SPT/Shelby Capability
  • Wireline Coring Capability (3" PQ)
  • Auger Capability
  • Onboard grouting capability
  • Top drive and open derrick for ease of setting instruments, casing & auger operation
  • Engine preheater
  • Positive Air Shutdown
  • Revolving Lights/Backup Alarm

Rig 12

Rig 12 - Details and Capability

Versa Drill V100 Air/Mud Rotary mounted on a tandem all-wheel drive Peterbilt truck

  • New 2012
  • 300m depth capability
  • Front and Rear levelling jacks
  • Automatic pipe handling to 60m
  • SPT/Shelby Capability
  • Wireline Coring Capability (3" PQ)
  • Auger Capability
  • Onboard grouting capability
  • Positive Air Shutdown
  • Revolving Lights/Backup Alarm

Rig 20

Rig 20 - Details and Capability

New 2014 Versa Drill V100 Air/Mud Rotary mounted on a HT300 XL Custom Track Carrier

  • 300m depth capability
  • Front and Rear levelling jacks
  • Automatic pipe handling to 60m
  • SPT/Shelby Capability
  • Wireline Coring Capability (3" PQ)
  • Auger Capability
  • Onboard grouting capability
  • Top drive & open derrick for ease of setting instruments, casing & auger operation
  • Engine preheater
  • Positive Air Shutdown

Unit 30

Unit 30 - Details and Capability

Flat, heated water tank (1600 gallon capacity) with folding crane mounted on a tandem Peterbilt truck

  • 10,000 lb. hydraulic crane
  • Engine preheater
  • Positive air shutdown

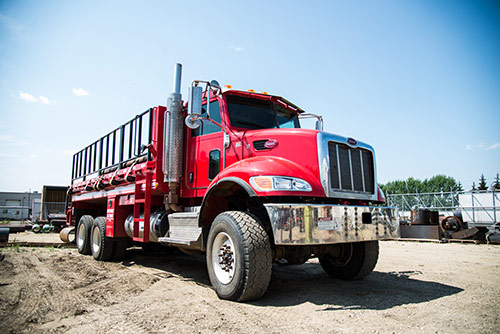

Unit 32

Unit 32 - Details and Capability

Flat water tank (1600 gallon capacity) with stiff boom crane mounted on a tandem all-wheel drive Peterbilt truck

  • New 2014
  • Heated tank
  • 10,000 lb. hydraulic crane
  • Engine preheater

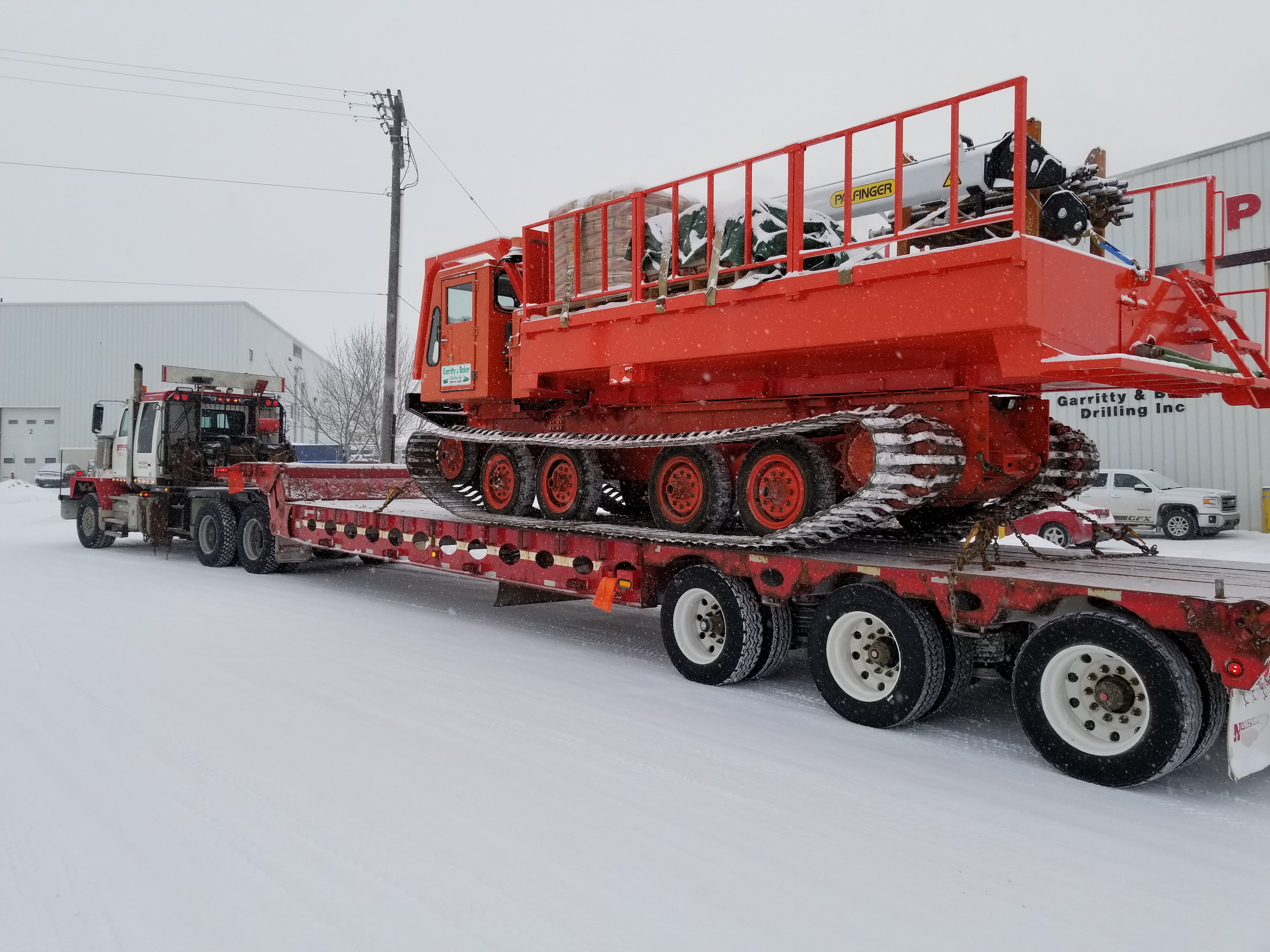

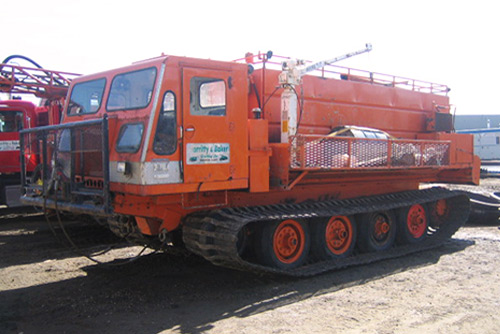

Unit 40

Unit 40 - Details and Capability

Water tank (1600 gallon capacity) mounted on a Nodwell 110 track carrier

  • Heated tank
  • 1 ton electric crane
  • Ground pressure loaded – 4 psi
  • Engine preheater
  • Positive air shutdown
